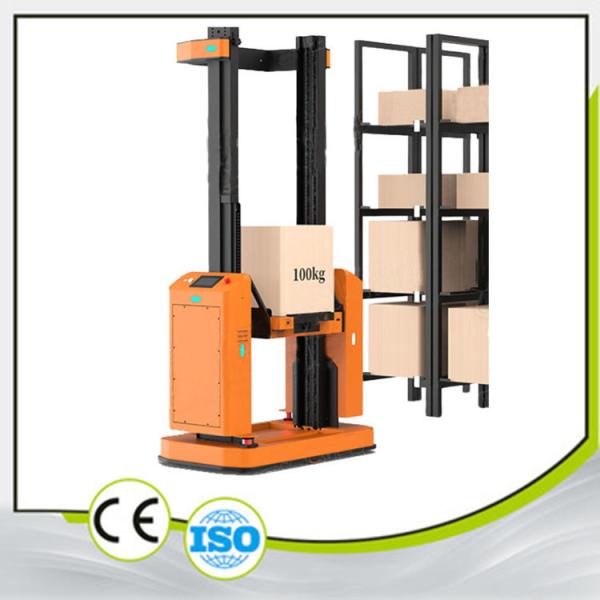

Telescopic Fork Pallet Truck AGV Automated Guided Vehicle Side Fork Type 50KG-100KG

Product Categories

Guangzhou Tianyue Automation Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Telescopic Fork Pallet Truck AGV Automated Guided Vehicle Side Fork Type 50KG100KG
Brand: TIANYUE
Price: 1 USD

Brand Name : TIANYUE

Model Number : TY-CC-CC-100

Certification : 3c.ce

Place of Origin : GUANGZHOU

MOQ : 1

Payment Terms : T/T

Supply Ability : 100

Delivery Time : 45 work days

Packaging Details : wooden box

Drive mode : mecanum wheel

Pick-up and delivery methods : Side lift telescopic fork

power supply : Lithium Iron Phosphate

size : customized

colorapplication : warehousing

Load weight : 100KG

Contact Now

Parameter	Details
Product Name	Warehouse Side Fork Omnidirectional AGV
Product Dimensions	Length × Width × Height (customizable as per requirements)
Loading Mode	Precise docking lift, side fork extension for pick and place
Load Capacity	50-100 KG (customizable as per requirements)
Control Mode	PLC, microcontroller (customizable as per requirements)
Guidance Mode	Laser, QR code, magnetic stripe (customizable as per requirements)
Travel Directions	Forward, backward, left turn, right turn, fork, 360° rotation, lateral movement, translation, omnidirectional
Drive Mode	Mecanum wheel drive
Drive Power	DC 48V
Travel Speed	Linear: 0-40 m/min, Turning: 0-20 m/min
Repeat Positioning Accuracy	±5 mm
Allowable Road Surface Flatness	≤5 mm
Operating Mode	Continuous 24-hour operation
Climbing Ability	≤5%
Charging Mode	Online charging (side charging)
Obstacle Sensor Safety Sensing Range	Detection distance: ≤3 m (adjustable), Sensor detection angle: ≤270° (adjustable), Emergency braking distance: < 20 mm
Safety Protection	Front obstacle detection sensor, double protection safety touch edge collision prevention mechanism, emergency stop switch
Alarm Form	Audible and visual alarm, tri-color light, horn
Operating Noise	Less than 70 dB (A)
Battery	Type: Lithium Iron Phosphate Battery, Voltage: 48V, Capacity: customizable
Design Life	>10 years

Product Tags:
